In this project, we worked with the City of Edmonton to design a better, uniquely Edmonton bike rack. With functionality, modularity, and feasibility at the forefront, we came up with a simple yet appealing design that uses two different diagonals– which we found was the most functional shape for fitting
many different sizes of bikes. There is also a spot to hang your bike from the seat in order to do any quick maintenance.
many different sizes of bikes. There is also a spot to hang your bike from the seat in order to do any quick maintenance.
The design targets creating something more functional for our community, focusing on addressing the primary concern of theft. The project emphasizes producing bike racks with anti-theft features, ensuring both safety and practicality. Aesthetic considerations were centered around showcasing modularity, allowing the racks to adapt to various environments while maintaining a sleek, modern appearance.
Additional Group Members: Adam Stringer & Ainsley Toner
Specs: H 34” x W 4’
Materials: Powder coated mild steel tube and cast steel.
Specs: H 34” x W 4’
Materials: Powder coated mild steel tube and cast steel.
Base cast steel

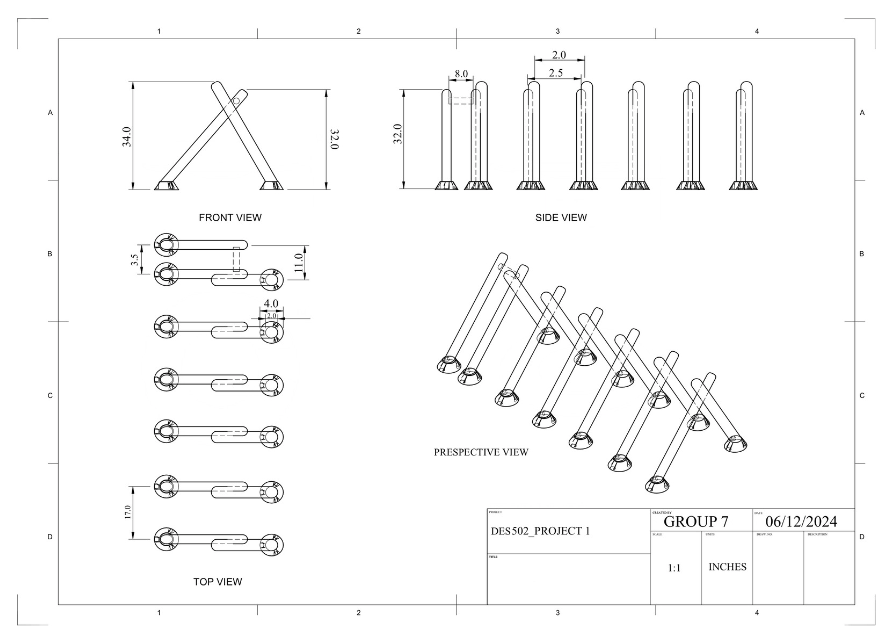

Orthographic

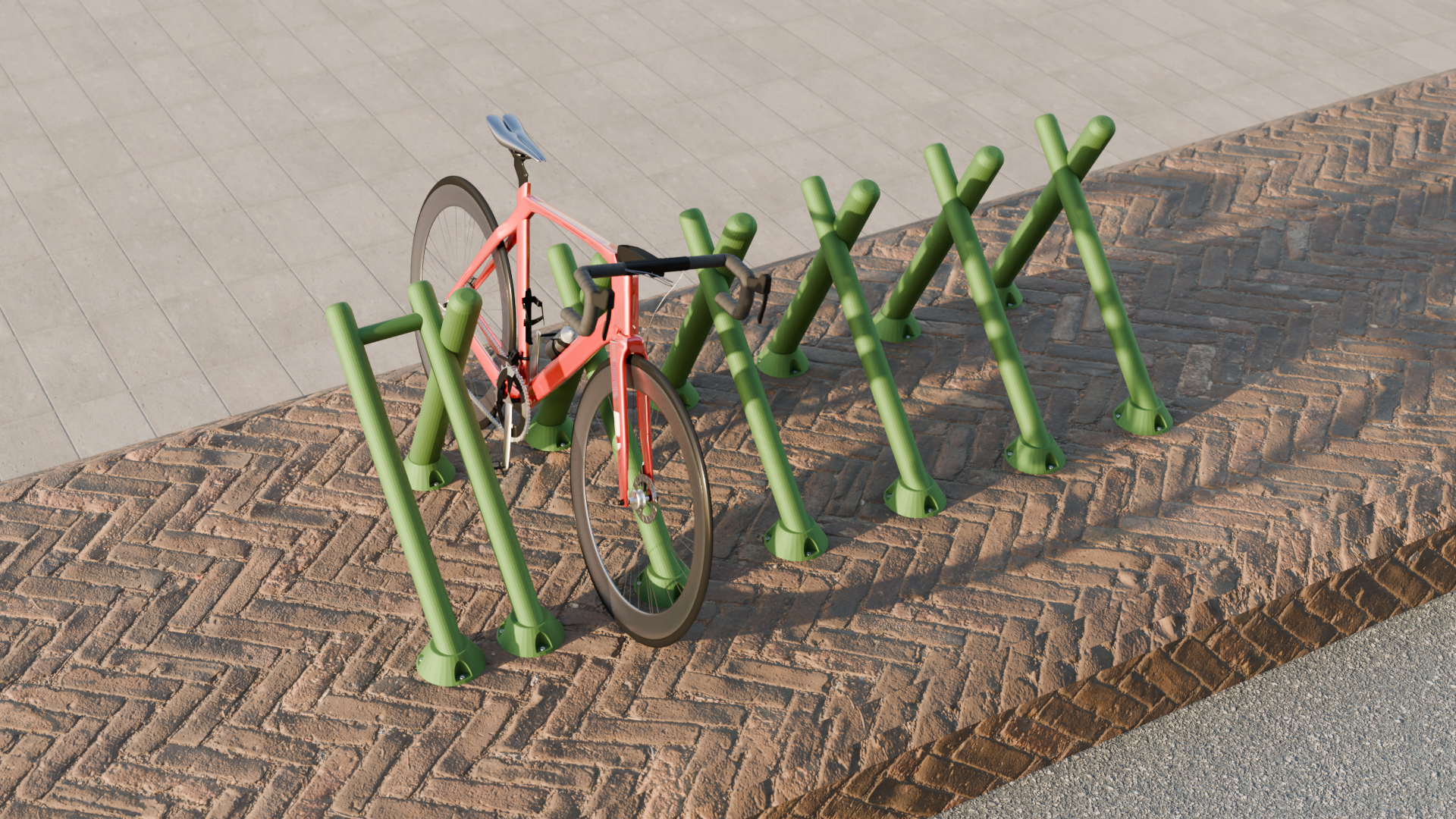

3D model of the approved bike racks and a bike insitu for scale
REFLECTION:
This project continued to expand my knowledge of Rhino 8 and taught me the importance of effectively managing a project timeline. With so many components, such as 3D printing, testing prototypes, client communication, and liaising with the City of Edmonton, I had to adapt my approach to meet the expectations of both the real world and my academic background. Navigating the demands of a professional project compared to the more controlled, academic environment required a shift in mindset.
